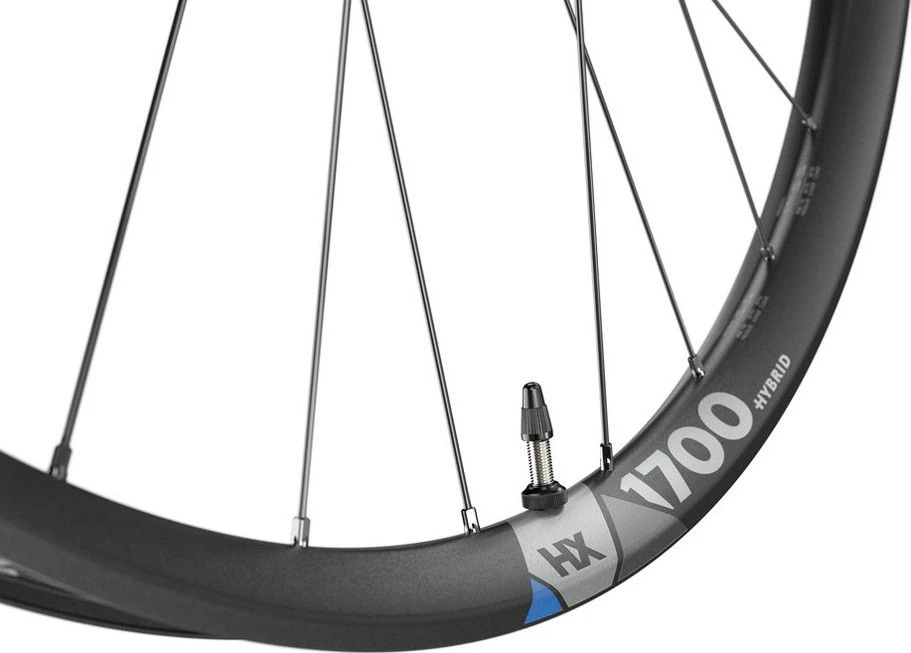

Dt-swiss DT Swiss HX 1700 Spline 29” 35 Mm Front Wheel | Boost 15×110 Mm | 6 Bolts | 2022

The DT Swiss HX 1700 Spline is a high-end aluminum wheel with proven technology to extend your eMTB ride. An eMTB is designed to quickly ride up and down mountains and to provide fun. The new HX 1700 Spline, the high-end aluminum wheelset, does precisely that.

With several years of expertise in hybrid bicycle components and specific, demanding testing procedures, DT Swiss has redesigned this wheelset to suit the extended use of e-mountain biking. The redesigned 350 hub features a bigger hub body, enabling better brake and drive torque resistance, resulting in better durability. The new hub is now combined with a high-end welded aluminum rim and reinforced hybrid spokes. This wheel is available in two inner widths and two wheel sizes and therefore ready for anyone who wants to extend their eMTB adventure.

Main features:

• An aluminum, hooked, tubeless ready rim available in 30 or 35 mm of inner width and in 29” or 27.5”.
• Redesigned hub shell for enhanced durability with better brake and drive torque resistance than the previous range, and burlier eMTB look.
• DT Hybrid 1 spokes are reinforced and increase the lateral and torsional stiffness of the wheel.

Features:

General:

• Weight: 1065 g.
• Recommended system weight max: 150 kg.
• ASTM Classification: 4.

Rim:

• Material: aluminum.
• Rim joint: Welded.
• Tire interface: Hooked / Crotchet tubeless TC.
• Valve hole: Presta.
• Rim diameter: 29″ / 700c.
• Decal type: Waterslide.
• Inner width: 35 mm.
• Outer width: 40 mm.
• Rim height: 21 mm.

Hub:

• Hub type: 350.
• Axle system: RWS Thru Axle 15 mm.
• Built-in dimension: Boost 110 mm.
• Brake interface: 6-bolts (Disc IS).

Spokes and nipples:

• Spokes left: DT hybrid 1.
• Spokes right: DT hybrid 1.
• Spoke pattern: Three-cross (1:1).
• Nipples: DT Prolock Squorx ProHead alu.

Inclusive:

• Tubeless tape 37 mm.
• Tubeless valve MTB 32 mm.

Reference:

• WHX1700BFIXSA18425: Front wheel – HX 1700 Spline 29 – 35 mm IS 15/110 mm.
