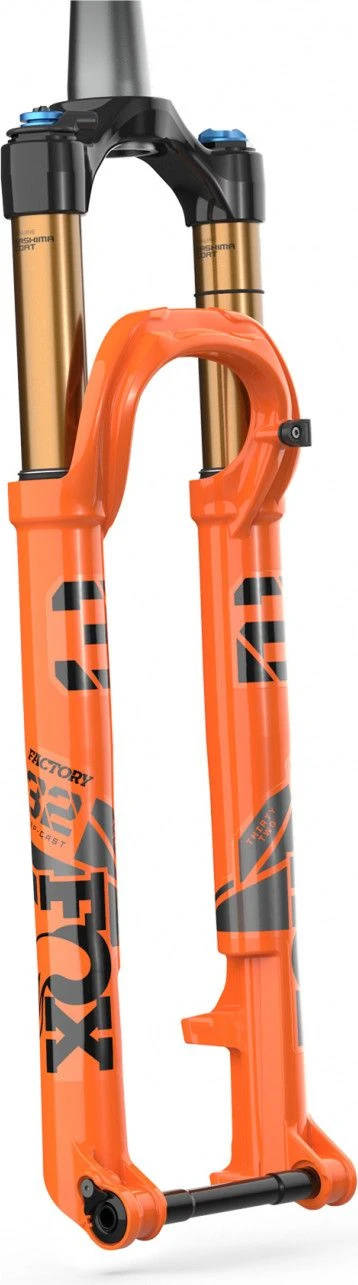

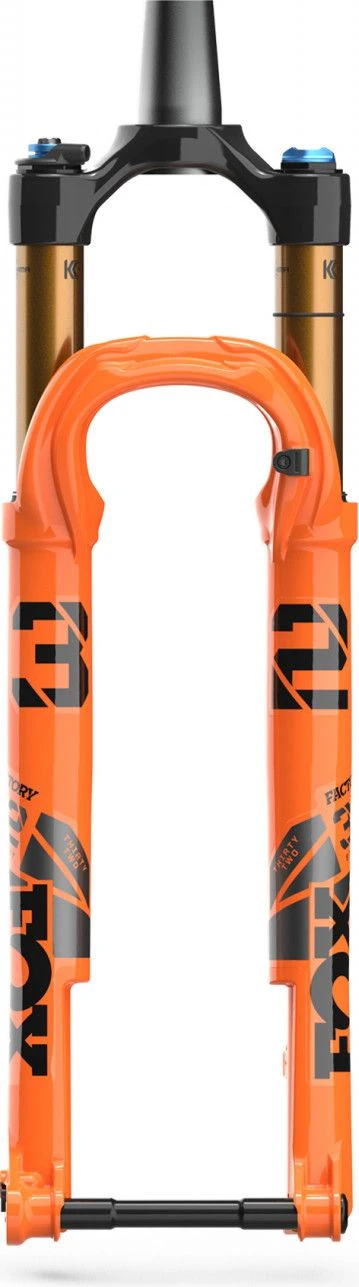

Fox Racing Shox 32 Float Factory SC 29 ” Kabolt Fork | FIT4 Remote 2 Pos | Boost 15x110mm | Offset 44 | Orange 2023
Original price was: $317.00.$97.99Current price is: $97.99.
- Protect Your Information, Shop with Safe Payments
- 100% Quality Promise
- Shop with confidence, we guarantee quality.
- Enjoy top quality items for less
Adjust a fork
Maintain a fork
Here is the new Fox 32 Factory SC, used by international pilots it represents the top of the Fox 32 range. In this version it offers a ” FIT4 ” cartridge fitted with a floating piston and a spring with three modes of compressions: Open / platform / closed.
But the evolution comes mainly from the construction “ SC ” this Step-Cast process is not only aesthetic, with this reduction in volume, it saves weight, space for the disc and spokes and the use of tires up to 2.3 section.
In this 2021 version, the tee has been reinforced in order to gain rigidity.
Details:
- Reinforced tee for increased rigidity.
- Size: 29 ”
- Step-Cast Jamb
- 1”1 / 8-1.5 ” conical pivot
- Axle: Boost 15×110 mm Kabolt (Black)
- Aluminum serie 7000
- Hydraulic: Cartridge Fit4
- Spring: Air Float
- Settings: 2 positions open / closed.
- Plungers: 32 mm
- 2 years warranty
Delivered with :
- Handlebar control.
- Hose guide.
- Tokens
References :
- 910-21-035 / 32 Float SC 29 “Factory 100 FIT4 remote orange Kabolt 110 BOOST conical offset 44mm 2022
Kabolt axis:
Designed by Geoff Kabush as part of the RAD program, the Kabolt is now available as standard.
- 40g lighter than the Fox quick release axle (54% less weight)
- Installation with 6mm hex wrench
Frame 32 Step-Cast
The particular shape of the lower tee does not only have an aesthetic effect. The narrow position of the 32 Step-Cast (SC) frame saves weight and the stepped design allows room for the spokes and brake rotor. The 32 SC chassis, equipped with 32 mm upper tubes, has a large overlap of the bushings for quality piloting; the hollowed out lower arms further save weight.

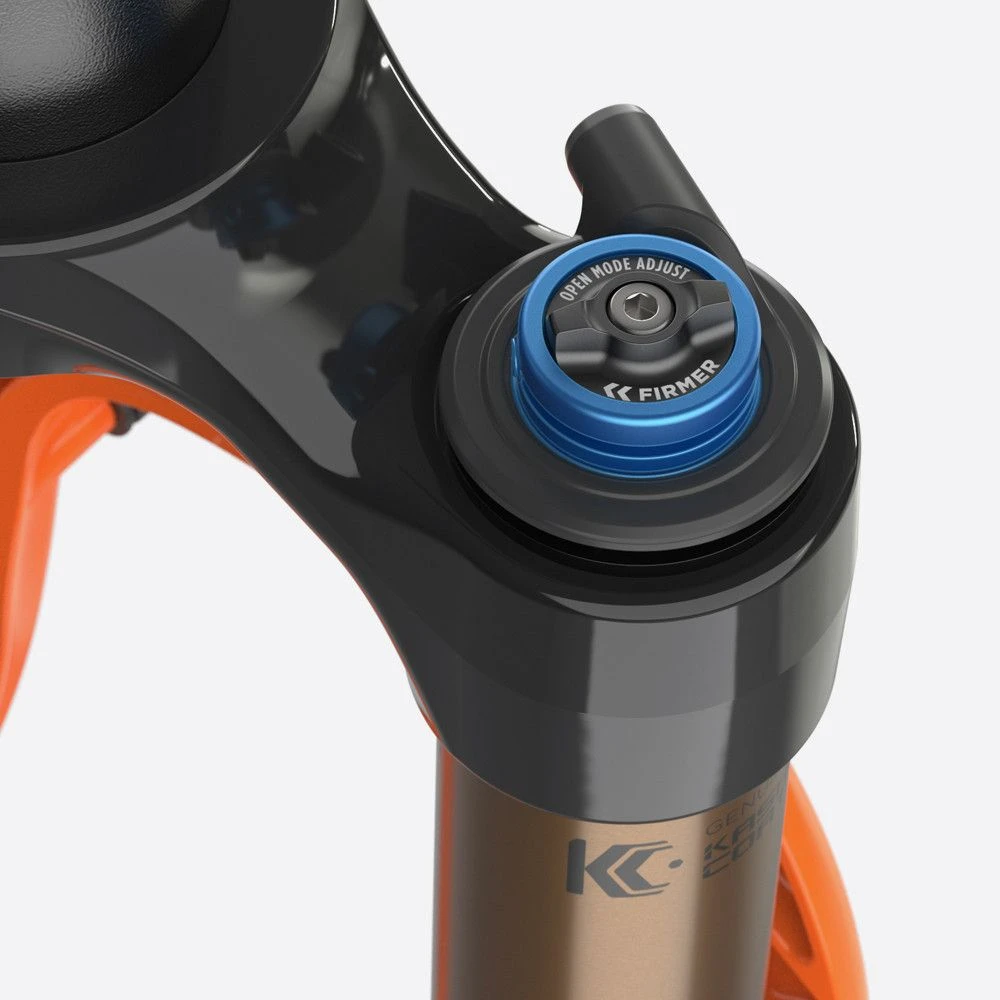

Fit4 Cartridge:
Being the fourth generation, our patented FIT4 (FOX Isolated Technology) sealed cartridge system allows three instantaneous compression damping positions (open, medium and firm) to adapt to different trail conditions. The Factory Series forks additionally feature 22 clicks of low-speed compression adjustment in open mode to allow mountain bikers to fine-tune damping.
The FIT4 cartridge has been redesigned taking inspiration from the HSC / LSC model, which has been acclaimed many times, in order to improve damping whatever the fork. This year, the FIT4 shock comes with a new tuning that provides better sensitivity while retaining support.
Float damping:
The FLOAT pneumatic shock absorber developed for the 32, 34 and 40 forks is lighter and reduces the force required to release. It offers excellent sensitivity on small bumps regardless of the rider and the pressure setting.
Similar to our FLOAT shocks, the new FLOAT system features negative and positive chambers that balance automatically. This provides proper pressure for every mountain biker. The progressiveness of the damping curve is adjustable by means of spacers for the air volume so that mountain bikers can precisely adjust the behavior of the air shock.
MORE INFORMATION
| Steerer | Tapered 1”1/8-1.5” |
| Front axle | Boost 15 x 110 mm |
| Lock | On the bar |
| Width | 32mm |
| Fork Caliper Mount | Post Mount (PM) |
| Offset (mm) | 44 |
| Size | 100 |
|---|
Be the first to review “Fox Racing Shox 32 Float Factory SC 29 ” Kabolt Fork | FIT4 Remote 2 Pos | Boost 15x110mm | Offset 44 | Orange 2023”
Related products
-30%
Original price was: $34.99.$24.49Current price is: $24.49.
-30%
Frames, Suspensions
Original price was: $49.99.$34.99Current price is: $34.99.
-30%
Frames, Suspensions
Fox Racing Shox FOX Volume Spacer. FLOAT NA 2. 34. 1.214 Bore Green
Original price was: $4.99.$3.49Current price is: $3.49.
-30%
Original price was: $69.99.$48.99Current price is: $48.99.
-75%
Original price was: $383.00.$95.99Current price is: $95.99.
-73%
Components

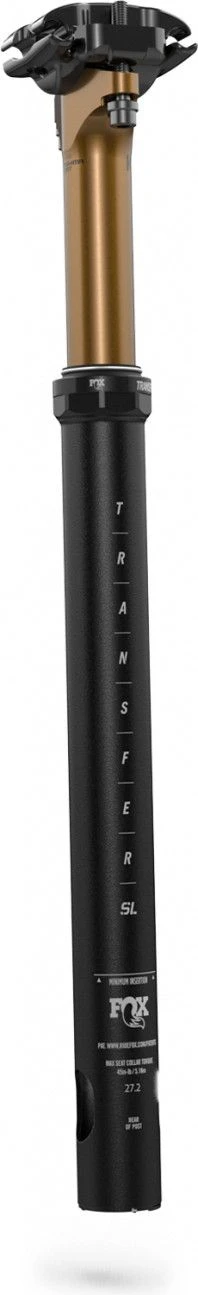

Fox Racing Shox Transfer SL Factory Internal Passage Black 2023 Dropper Seatpost (No Control)
