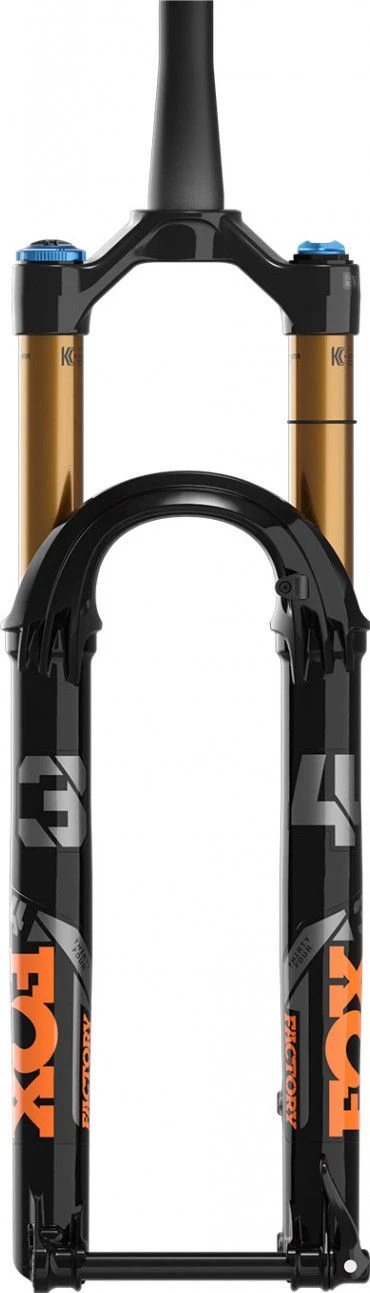

Fox Racing Shox 34 Float Factory 29 ” Fork | Grip 2 | Boost 15×110 | 44mm Offset | Black 2023

Original price was: $366.00.Current price is: $98.99.

SKU: YWXSD 2083092 Categories: Forks, Frames, Frames, Suspensions Tag: Fox Racing Shox

Protect Your Information, Shop with Safe Payments
100% Quality Promise
Shop with confidence, we guarantee quality.
Enjoy top quality items for less

Adjust a fork

Maintain a fork

The new Fox 34 is the fork intended for Trail, All-Mountain practice.

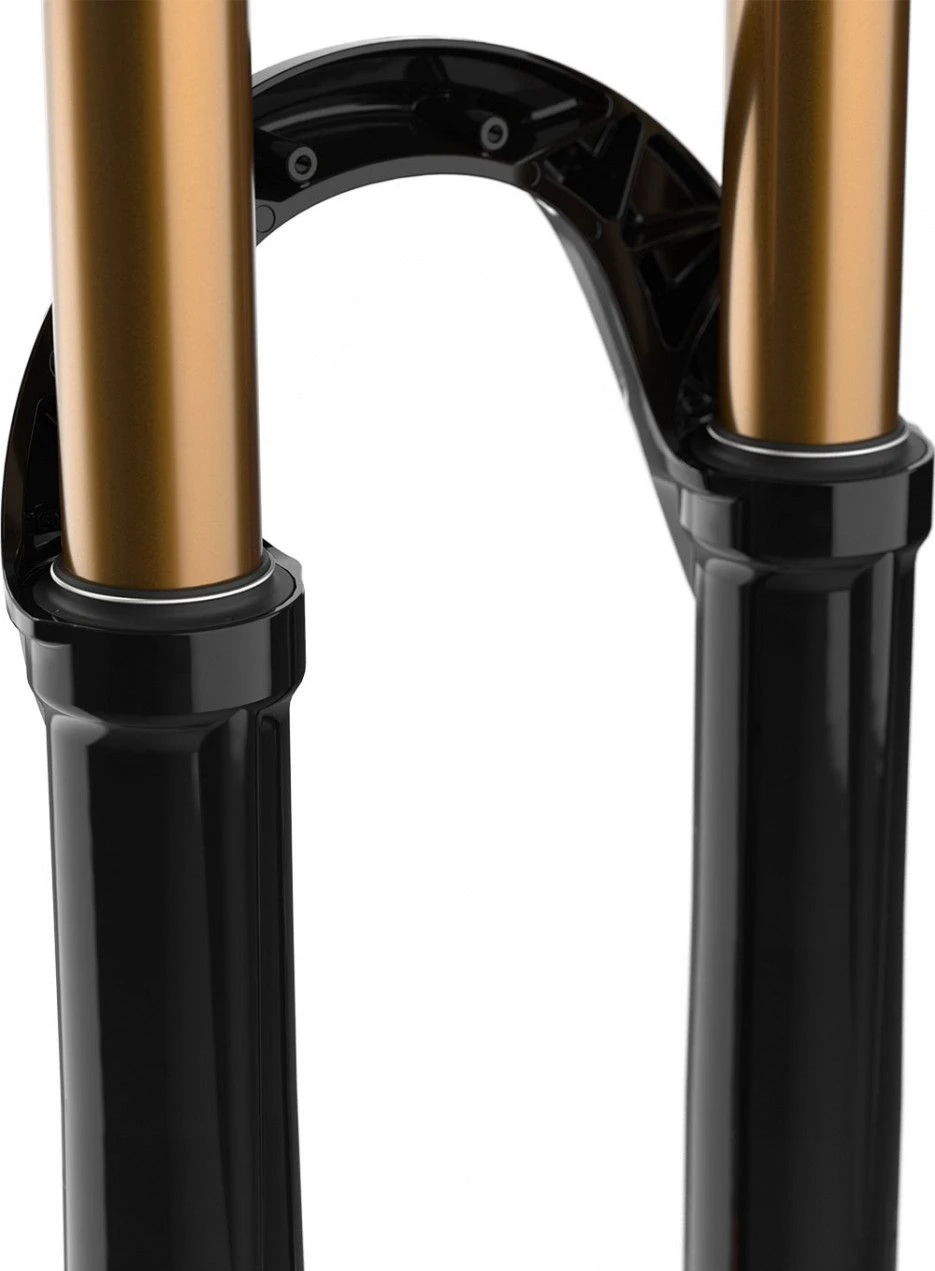

Fox has completely revised his copy. The weight / stiffness ratio improves thanks to lower weights and unchanged stiffnesses. The chassis of the 34 evolves greatly. Two modifications are very visible. The fork arch has been modified to fit better with current frames which have short and widened head tubes.

Massive and announced very rigid, the arch offers a clearance that allows the installation of 29×2.60 section tires on the 34. At the rear of the fork, two channels follow the legs.
Small explanation: it is a logical phenomenon, in empty spaces, the air pressure increases, inside the fork, when the fork takes the travel. This uncontrolled overpressure can sometimes prevent the rider from using the entire race. Fox has equipped its new 34 with additional channels placed in the legs, these prevent overpressure build-up. This technology is also available on Enduro 38 & 36 forks.

This new construction also promotes permanent lubrication of seals and guide rings. The operation will thus be, at least in theory, smoother and it will be easier to use all the travel of the fork. The Evol air spring has a negative spring readjusted to improve the handling of the fork at mid-travel. In 2022, the forks are delivered with a shim that allows this volume to be adjusted according to your wishes, more linearity or more progressiveness.

Details:

100% new chassis, optimized weight / stiffness ratio.
Channels preventing overpressure build-up.
Arch clearance (29×2.60) 58mm
Size: 29 ”
1”1 / 8-1.5 ” conical pivot
Axle: Boost 15×110 mm
Hydraulic: Cartridge Grip 2
Evol air chamber
Spring: Air
Offset: 44 mm
Plungers: 34 mm
Weight: 1698g

Settings:

High-speed compression (w / VVC) 8 clicks
Low-speed compression 16 clicks
High-speed rebound (w / VVC) 8 clicks
Low-speed rebound 16 clicks

Delivered with:

Direction star.
QR axis.
Air volume adjustment wedge.
Hose guide.

References:

910-21-001 / 34 Float 29 “Factory 140 Grip 2 Hi / Low Comp / Reb gloss black 15QRx110 BOOST conical offset 44mm 2022

Float damping:
The FLOAT pneumatic shock absorber developed for the 32, 34 and 40 forks is lighter and reduces the force required to release. It offers excellent sensitivity on small bumps regardless of the rider and the pressure setting.
Similar to our FLOAT shocks, the new FLOAT system features negative and positive chambers that balance automatically. This provides proper pressure for every mountain biker. The progressiveness of the damping curve is adjustable by means of spacers for the air volume so that mountain bikers can precisely adjust the behavior of the air shock.
