Fox Racing Shox 34 SC Float Factory 29 ” Kabolt Fork | FIT4 Remote | Boost 15×110 | 44mm Offset | Orange 2023

Original price was: $304.00.Current price is: $98.99.

SKU: YWXSD 2046161 Categories: 29", Frames, Frames, Suspensions Tag: Fox Racing Shox

Protect Your Information, Shop with Safe Payments
100% Quality Promise
Shop with confidence, we guarantee quality.
Enjoy top quality items for less

Adjust a fork

Maintain a fork

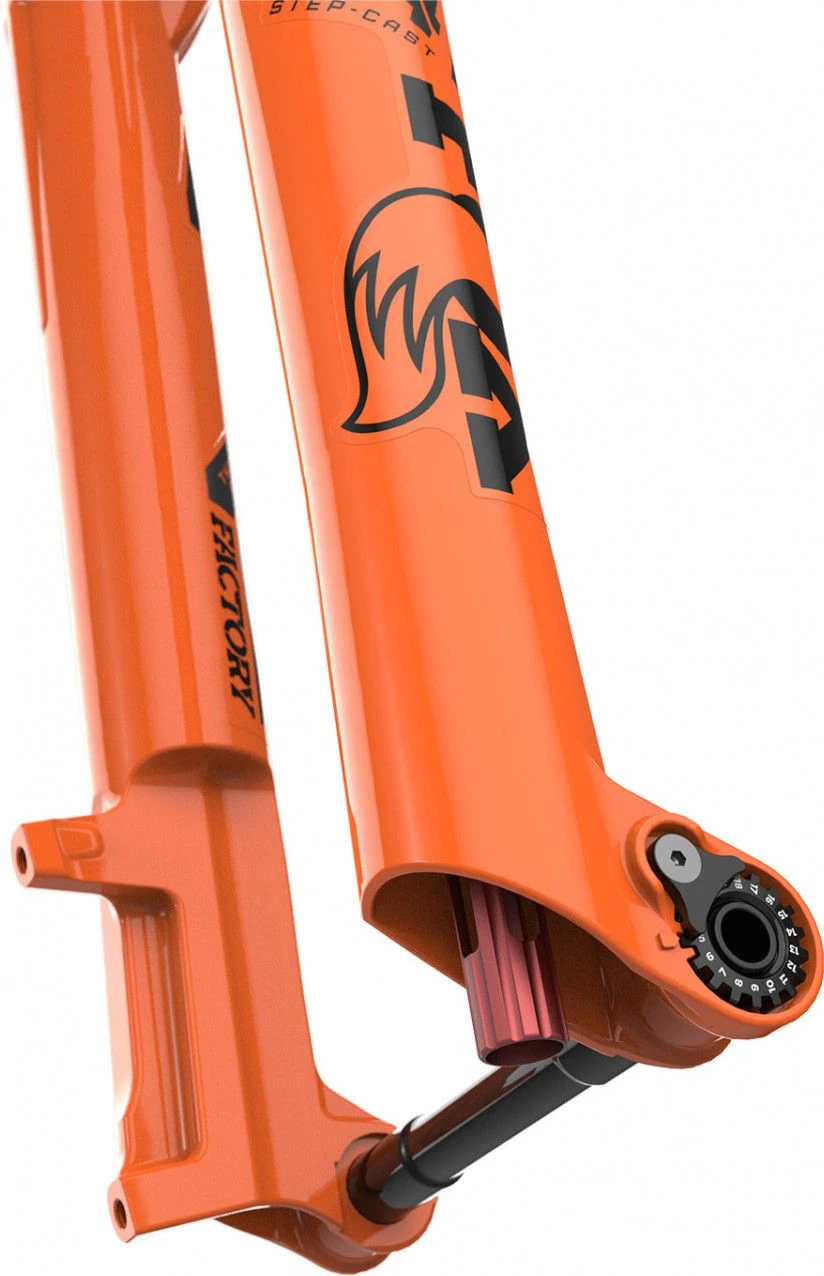

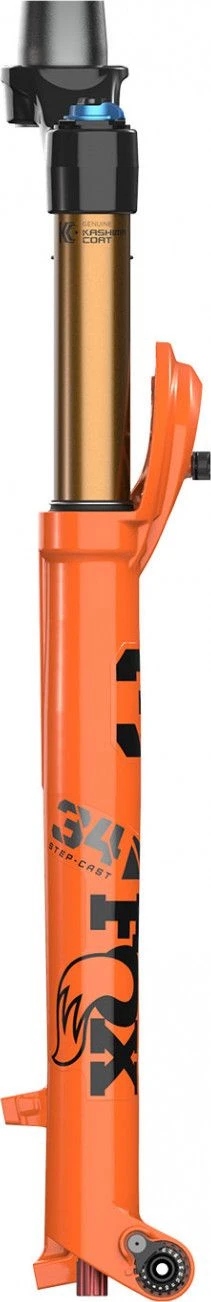

The new Fox 34 SC is a fork intended for an XCO, XC Marathon practice, in this new SC version it has, like the Fox 32, a lightweight chassis (Step Cast) weight gain and rigidity guaranteed!

Fox has completely revised his copy. The weight / stiffness ratio improves thanks to lower weights and unchanged stiffnesses. The chassis of the 34 SC is changing greatly. Two modifications are very visible. The fork arch has been modified to fit better with current frames which have short and widened head tubes.

Massive and announced very rigid, the arch offers a clearance that allows the installation of 29×2.40 section tires on the 34 SC. At the rear of the fork, two channels follow the legs.
Small explanation: it is a logical phenomenon, in empty spaces, the air pressure increases, inside the fork, when the fork takes the travel. This uncontrolled overpressure can sometimes prevent the rider from using the entire race. Fox has equipped its new 34 with additional channels placed in the legs, these prevent overpressure build-up. This technology is also available on Enduro 38 & 36 forks.

This new construction also promotes permanent lubrication of seals and guide rings. The operation will thus be, at least in theory, smoother and it will be easier to use all the travel of the fork. The Evol air spring has a negative spring readjusted to improve the handling of the fork at mid-travel. In 2022, the forks are delivered with a shim that allows this volume to be adjusted according to your wishes, more linearity or more progressiveness.

Details:

SC (Step Cast) frame
100% new chassis, optimized weight / stiffness ratio.
Channels preventing overpressure build-up.
Arch clearance (29×2.40)
Size: 29 ”
1”1 / 8-1.5 ” conical pivot
Axle: Boost 15×110 mm
Hydraulic: Cartridge Fit4
Evol air chamber
Spring: Air
Offset: 44 mm
Settings: preload, trigger and 3 positions Open / platform / closed.
Plungers: 34 mm
Weight: 1496g

Delivered with:

Handlebar control.
Direction star.
Kabolt axis.
Air volume adjustment wedge.
Hose guide.

References:

910-21-042 / 34 Float SC 29 “Factory 120 FIT4 remote orange Kabolt 110 BOOST conical offset 44mm 2022

Fit4 Cartridge:

Being the fourth generation, our patented FIT4 (FOX Isolated Technology) sealed cartridge system allows three instantaneous compression damping positions (open, medium and firm) to adapt to different trail conditions. The Factory Series forks additionally feature 22 clicks of low-speed compression adjustment in open mode to allow mountain bikers to fine-tune damping.

The FIT4 cartridge has been redesigned taking inspiration from the HSC / LSC model, which has been acclaimed many times, in order to improve damping whatever the fork. This year, the FIT4 shock comes with a new tuning that provides better sensitivity while retaining support.
